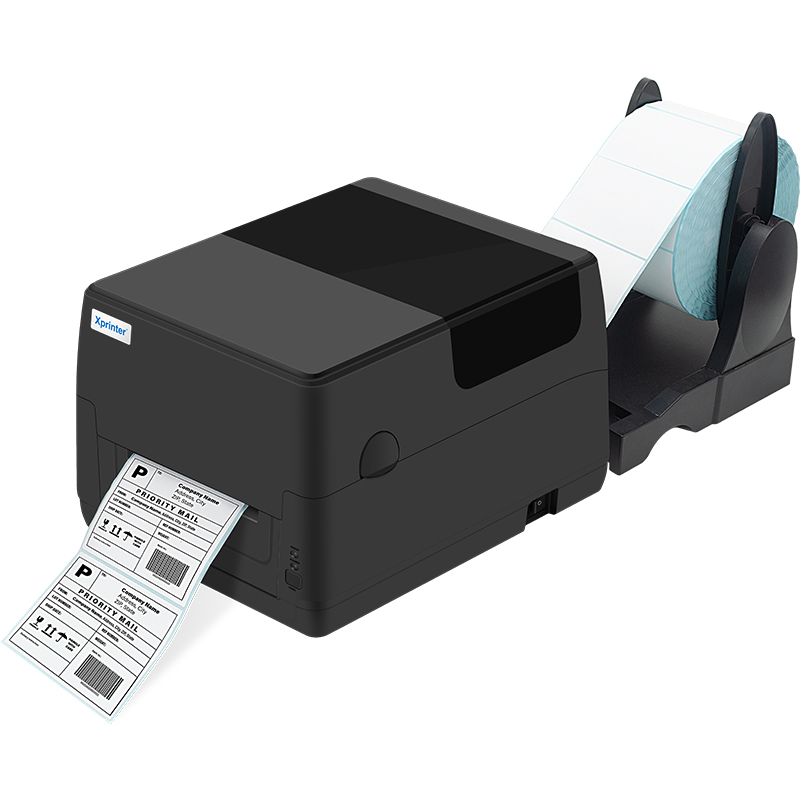

XP-T453B/T453E is available in both direct thermal and thermal transfer.It contains a powerful 32-bit processor for fast label throughout and 8MB flash memory for increased storage of fonts and graphics. The printing speed can be up to 127mm per second,and with 300 meter ribbon that limits downtime by requiring less frequent replacement.
| ● Large paper bin with large window design | ● Multi media detection, manually adjustable |
| ● 300 meters ribbon capacity | ● 32-bit processor with 8 MB SDRAM,8MB flash memory |
| Printer Model | XP-T453B | XP-T453E |
| Printing Features | ||
| Resolution | 203 DPI | 300 DPI |
| Print method | Thermal Transfer / Direct Thermal | Thermal Transfer / Direct Thermal |
| Max.print speed | 127 mm (5”) / s Max. | 101.6 mm (4”) / s Max. |
| Max.print width | 104 mm (4.09”) | 104 mm (4.09”) |
| Max.print length | 1778 mm (70”) | 889 mm (35”) |
| Media | ||
| Media type | Continuous, gap, black mark, fan-fold and punched hole | |
| Media width | 25.4-118mm (1.0”-4.6”) | |
| Media thickness | 0.06~0.254 mm (2.36~10mil) | |
| Media core diameter | 25.4 ~ 76.2 mm (1 "~ 3 ") | |
| Label length | 10 ~ 1778 mm(0.39" ~ 70" ) | 10 ~ 889 mm(0.39" ~ 35" ) |
| Label roll capacity | 127 mm (5“) (external diameter) | |
| Ribbon capacity | Max. 300 m | |
| Ribbon width | 110 m | |
Gap, black marked height | ≤2mm | |
| Performance Features | ||
| Processor | 32-bit CPU | |
| Memory | 8MB Flash Memory/ 8MB SDRAM/ Flash memory can be expanded to Max. 4 GB | |
| Interface | USB, Optional: Serial, Lan, WIFI/Bluetooth | |
| Sensors | ①Gap sensor | |
| Fonts/Graphics/Symbologies | ||
| Internal fonts | 8 alpha-numeric bitmap fonts, Windows fonts are downloadable from software. | |
| 1D bar code | Code 39, Code 93, Code 128UCC, Code 128 subsets A, B, C, Codabar, Interleaved 2 of 5, EAN-8,EAN-13,EAN-128, UPC-A, UPC-E, EAN and UPC 2(5) digits add-on, MSI, PLESSEY, POSTNET, China POST, GS1 DataBar, Code 11 | |
| 2D bar code | PDF-417, Maxicode, DataMatrix, QR code, Aztec | |
| Rotation | 0°, 90°, 180°, 270° | |
| Emulaion | TSPL, EPL, ZPL, DPL | |
| Physical Features | ||
| Dimension | 282 mm (D) x 232.2 mm (W) x 173.4 mm (H) | |
| Weight | 2.56 kg | |
| Reliability | ||
| Print head life | 30 km | |
| Software | ||
| Driver | Windows / Linux / Mac | |
| SDK | Windows / Android / iOS | |
| Power supply | ||
| Input | AC 100-240V 1.5A, 50-60Hz | |
| Output | DC 24V/2.5A | |
| Options | ||
| Factory Options | ① Lan ② Serial ③ WIFI module ④ Bluetooth module | |
| Dealer Options | ①External paper roll holder and 1 "paper roll; ②Extension board for external paper roll holder; ③Peeler ④Cutter | |
| Environmental Conditions | ||
Operation environment | 5 ~ 40°C（41~104°F），Humidity: 25 ~ 85% non-condensing | |
| Storage environment | -40 ~ 60°C（-40~140°F），Humidity: 10 ~ 90% non-condensing | |
A:Specialized in Receipt printers, Label Printers, Mobile Printers, Panel printers, Kiosk printer, Dot Matrix Printer , Bluetooth printers.
A:We support 12 months for all of our products.
A:Less than 0.3%
A:1% FOC parts dispatched with shipment. When it is damaged, you can replace it directly.
A:Delivery terms can be EX-WORKS, FOB or C&F.
A:For less than 1000pcs, 7-10 working days.
For more than 1000pcs, 10-15 working days.
A:Thermal printer compatible with ESC\POS.
Label printer compatible with TSPL\ EPL\ DPL\ ZPL emulation.
A:We are a company with ISO9001:2015 international QMS certification. Our products have obtained CCC, CE, FCC, RoHS, KC, SAA, BIS, BSMI certifications.
