Color: Black

Product Overview

Product Specification

Service and Support

Product Overview

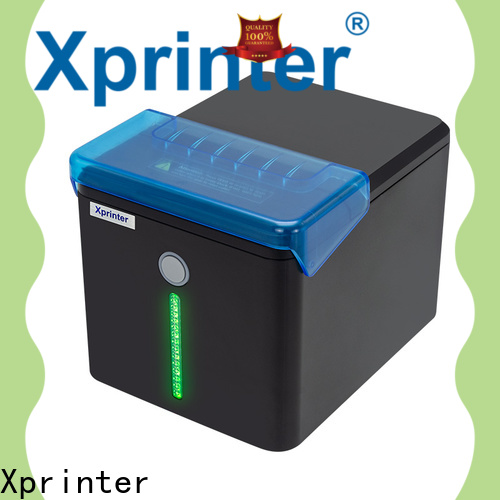

Xprinter for shop-1

● Printing speed 260mm/s	● Flash LED light and big beeper voice
● Waterproof and dustproof	● Support queuing function
● Wall Mount Capable

BROCHURES

DRIVER

Product Specification

Printing
Printing method	Direct thermal
Media width	79.5±0.5mm / φ 80 mm
Print width	72mm
Column capacity	576 dots/line or 512 dots/line
Printing speed	230mm/s	260mm/s
Interface	USB / USB+Serial / USB+Lan / (Optional: Bluetooth/Wifi)	USB+Serial+Lan (Optional: Bluetooth/Wifi)
Line spacing	3.75mm (Adjustable by commands)
Character size	ANK，Font A：1.5×3.0mm（12×24 dots） Font B：1.1×2.1mm（9×17 dots） Chinese,traditional Chinese:3.0×3.0mm（24×24 dots）
Barcode Character
Extension character sheet	PC437（Standard Europe）、Katakana、PC850（Multilingual）、PC860（Portuguese）、PC863（Canadian-French）、PC865（Nordic）、West Europe、Greek、Hebrew、East Europe、Iran、WPC1252、PC866（Cyrillic#2）、PC852（Latin2）、PC858、IranII、Latvian、Arabic、PT151（1251）
1D Barcode	UPC-A / UPC-E / JAN13(EAN13) / JAN8(EAN8) / CODE39 / ITF / CODABAR / CODE93 / CODE128
2D Barcode	QR CODE / PDF417
Input buffer	96 Kbytes: USB+Serial / USB 256 Kbytes: USB+Lan	256 Kbytes
NV Flash	256 Kbytes
Power
Power adaptor	Input: AC 100V/240V, 50～60Hz; Output：DC 24V/2.5A
Printer input	DC 24V/2.5A
Cash drawer	DC 24V/1A
Physical characteristics
Weight	0.89 KG
Dimensions	168 × 130 × 123.5mm(D×W×H)
Environmental Requirements
Work environment	Temperature(0～45℃) humidity(10～80%)
Storage environment	Temperature(-10～60℃) humidity(10～90%)
Reliability
Auto cutter	Partial
Cutter life	1.5 million cuts
Printer head life	150 KM
Software
Emulation	ESC / POS
Driver	Windows / Linux / Mac OS / Android

Service support

Q:What’s your main product line?

A:Specialized in Receipt printers, Label Printers, Mobile Printers, Panel printers, Kiosk printer, Dot Matrix Printer , Bluetooth printers.

Q:What is the Warranty for your printers?

A:We support 12 months for all of our products.

Q:What is printer defective rate?

A:Less than 0.3%

Q:If the goods are damaged, what can we do ?

A:1% FOC parts dispatched with shipment. When it is damaged, you can replace it directly.

Q:What's your delivery terms ?

A:Delivery terms can be EX-WORKS, FOB or C&F.

Q:What’s your leading time?

A:For less than 1000pcs, 7-10 working days.
For more than 1000pcs, 10-15 working days.

Q:What are your product command?

A:Thermal printer compatible with ESC\POS.
Label printer compatible with TSPL\ EPL\ DPL\ ZPL emulation.

Q:How do you control quality?

A:We are a company with ISO9001:2015 international QMS certification. Our products have obtained CCC, CE, FCC, RoHS, KC, SAA, BIS, BSMI certifications.
