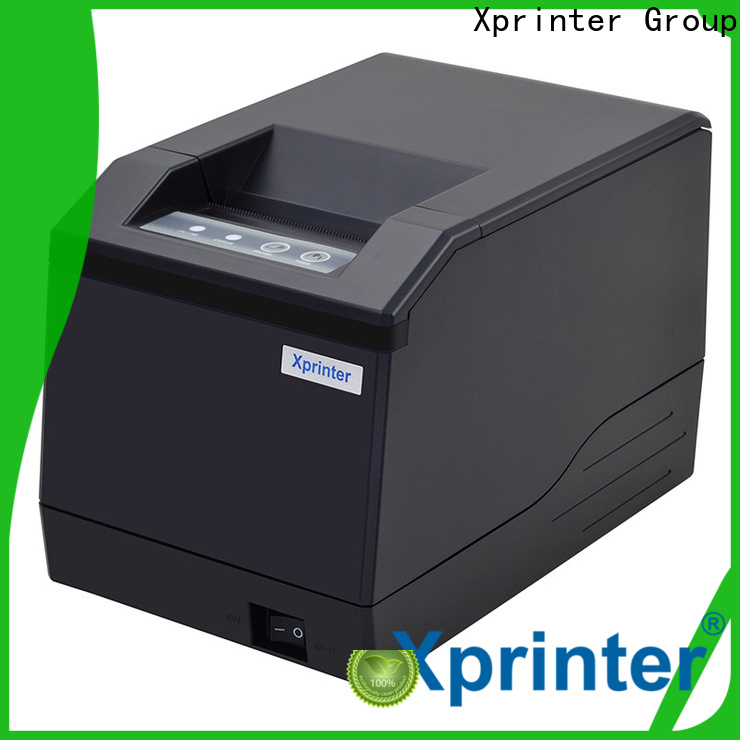

XP-303B, 3 inch thermal printer, is the latest 3” thermal barcode printer, supports IAP online firmware update. Auto calibration mode creates highly accurate printing. It also supports energy control to prevent printhead overheat. With dual mode of bluetooth, transmission distance can reach 10m.
| ● 127 mm/s high speed printing | ● Supports IAP online firmware update |
| ● Supports PDF417, QR CODE | ● With dual mode of bluetooth, transmission distance can reach 10m |
| Model | XP-303B | ||
| Mode | Label print mode | Receipt print mode | |
| Printing Features | |||
| Resolution | 203 DPI | ||
| Printing method | Direct Thermal | ||
| Print speed | 50.8 - 152 mm/s | 220 mm/s Max. | |
| Print width | 76 mm | 72 mm | |
| Media | |||
| Media type | Continuous, Gap, Black mark | Thermal paper | |
| Media width | 20~82 mm | 80 mm | |
| Media thickness | 0.06 ~ 0.08 mm | ||
| Media roll diameter | Max.100 mm | ||
| Performance Features | |||
| NV image memory | 4096 Kbytes | 4096 Kbytes | |
| Receipt buffer | 4096 Kbytes | 4096 Kbytes | |
| Interfaces | USB/ USB+Lan / USB+Serial+Lan （Optional : WIFI/Bluetooth) | ||
| Sensors | Print head temperature sensor / Print head position sensor /Paper existence sensor | ||
| Drawer port | 1 ports (Pin 2 for cashdrawer) | ||
| Fonts/Graphics/Symbologies | |||
| Character sizes | Font 0 to Font8 | ||
| 1D barcode | CODE128、EAN128、ITF、CODE39、CODE39C、CODE39S、CODE93、EAN13、EAN13+2、EAN13+5、EAN8、EAN8+2、EAN8+5、CODABAR、POSTNET、UPC-A、UPCA+2、UPCA+5、UPCE、UPCE+2、UPCE+5、MSI、MSIC、PLESSEY、ITF14、EAN14 | ||
| 2D bar code | PDF417、QRCODE | ||
| Emulaion | TSPL | ESC/POS | |
| Physical Features | |||
| Dimension | 212*140*144 (D×W×H) | ||
| Weight | 0.94 kg | ||
| Reliability | |||
| Print head life | 100 km | ||
| Software | |||
| Driver | Windows | Windows/ Linux/ Mac/ Android | |
| SDK | iOS/ Android/ Windows | ||
| Power supply | |||
| Input | DC 24V/2.5A | ||
| Environmental Conditions | |||
| Operation | 0~45 ℃ Humidity:RH 10 ~ 80% | ||
| Storage environment | -10 ~ 60℃ Humidity:10 ~ 90% | ||
A:Specialized in Receipt printers, Label Printers, Mobile Printers, Panel printers, Kiosk printer, Dot Matrix Printer , Bluetooth printers.
A:We support 12 months for all of our products.
A:Less than 0.3%
A:1% FOC parts dispatched with shipment. When it is damaged, you can replace it directly.
A:Delivery terms can be EX-WORKS, FOB or C&F.
A:For less than 1000pcs, 7-10 working days.
For more than 1000pcs, 10-15 working days.
A:Thermal printer compatible with ESC\POS.
Label printer compatible with TSPL\ EPL\ DPL\ ZPL emulation.
A:We are a company with ISO9001:2015 international QMS certification. Our products have obtained CCC, CE, FCC, RoHS, KC, SAA, BIS, BSMI certifications.
