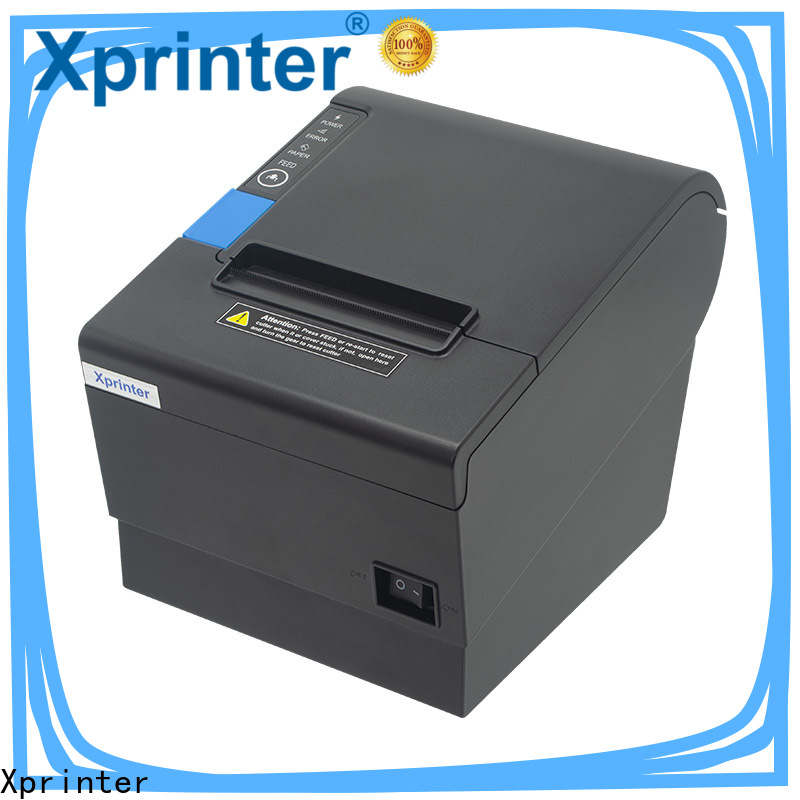

new network thermal receipt printer supply for supermarket

Product Overview

Product Specifications

Product Video

Service and Support

Product Overview

● Multiple interface connections, auto-cutter, wall mountable	● Support both 58mm and 80mm width paper. (300mm speed support)
● Queuing function, re-printing function. (USB+Lan, USB+Serial+Lan)	● lAP online upgrade, printer head over-temperature protection function, and cutter anti-jam function
● Support a variety of 1D barcode and 2D barcode printing.	● Compatible with ESC/POS commands

BROCHURES

DRIVER

Specification

Model	XP-Q801K
Printing
Printing method	Direct thermal
Paper width	80mm
Column capacity	576 dots/line or 512 dots/line
Printing speed	230 mm/s	260 mm/s	300 mm/s
Interface	USB / USB+Lan(Optional:BT/WiFi); USB+Serial;	USB+Serial+Lan(Optional:BT / WiFi)	USB+Serial+Lan(Optional:BT / WiFi)
Line spacing	3.75mm (Adjustable by commands)
Column number	80mm paper: Font A - 42 columns or 48 columns/Font B - 56 columns or 64 columns/ Chinese,traditional Chinese - 21 columns or 24 columns
Character size	ANK，Font A：1.5×3.0mm（12×24 dots） Font B：1.1×2.1mm（9×17 dots） Chinese,traditional Chinese:3.0×3.0mm（24×24 dots）
Cutter
Auto cutter	Partial
Barcode Character
Extension character sheet	PC347（Standard Europe）、Katakana、PC850（Multilingual）、PC860（Portuguese）、PC863（Canadian-French）、PC865（Nordic）、West Europe、Greek、Hebrew、East Europe、Iran、WPC1252、PC866（Cyrillic#2）、PC852（Latin2）、PC858、IranII、Latvian、Arabic、PT151（1251）
Barcode types	UPC-A/UPC-E/JAN13（EAN13）/JAN8（EAN8）/CODE39/ITF/CODABAR/CODE93/CODE128
2D Barcode	QR Code	QR Code / PDF417	QR Code / PDF417
Input buffer	USB / USB+Serial: 96 Kbytes USB+Lan : 256 Kbytes	256 Kbytes	4096 Kbytes
NV Flash	256 Kbytes	256 Kbytes	256 Kbytes
Power
Power adaptor	Input: AC 100-240V/50~60Hz Output: DC 24V/2.5A
Printer input	DC 24V/2.5A
Cash drawer	DC 24V/1A
Physical characteristics
Weight	1.0 KG
Dimensions	194.5145146.4mm (D×W×H)
Environmental Requirements
Work environment	Temperature (0～45℃) humidity(10～80%)
Storage environment	Temperature(-10～60℃) humidity(10～80%)
Reliability
Cutter life	1.5 million cuts
Printer head life	150 KM
Software
Emulation	ESC/POS
Driver	Windows/JPOS/OPOS/Linux/Android/Mac
Utility	Windows & Linux test Utility
SDK	iOS/Android/Windows

Product Video

Service support

Q:What’s your main product line?

A:Specialized in Receipt printers, Label Printers, Mobile Printers, Panel printers, Kiosk printer, Dot Matrix Printer , Bluetooth printers.

Q:What is the Warranty for your printers?

A:We support 12 months for all of our products.

Q:What is printer defective rate?

A:Less than 0.3%

Q:If the goods are damaged, what can we do ?

A:1% FOC parts dispatched with shipment. When it is damaged, you can replace it directly.

Q:What's your delivery terms ?

A:Delivery terms can be EX-WORKS, FOB or C&F.

Q:What’s your leading time?

A:For less than 1000pcs, 7-10 working days.
For more than 1000pcs, 10-15 working days.

Q:What are your product command?

A:Thermal printer compatible with ESC\POS.
Label printer compatible with TSPL\ EPL\ DPL\ ZPL emulation.

Q:How do you control quality?

A:We are a company with ISO9001:2015 international QMS certification. Our products have obtained CCC, CE, FCC, RoHS, KC, SAA, BIS, BSMI certifications.
