Product Overview
Product Specification
Service and Support
| ● Supports out-of-paper warning | ● Supports paper near-end warning |
| ● Supports black mark detection | ● Support QR code and PDF417 printing |
| ● Supports paper pick-up, jam, and pull detection | ● Support Linux/Windows system |

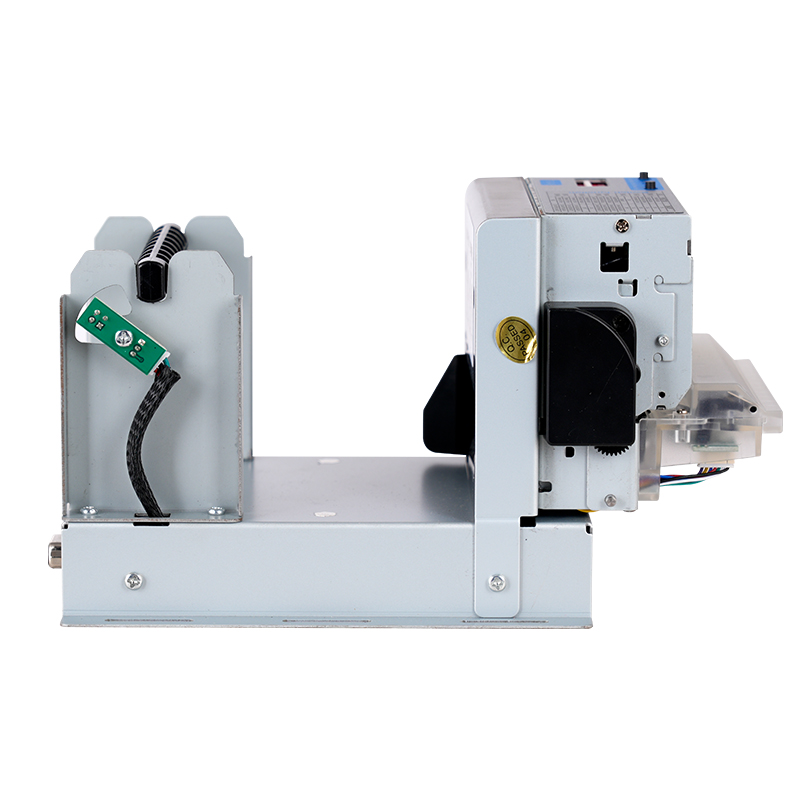

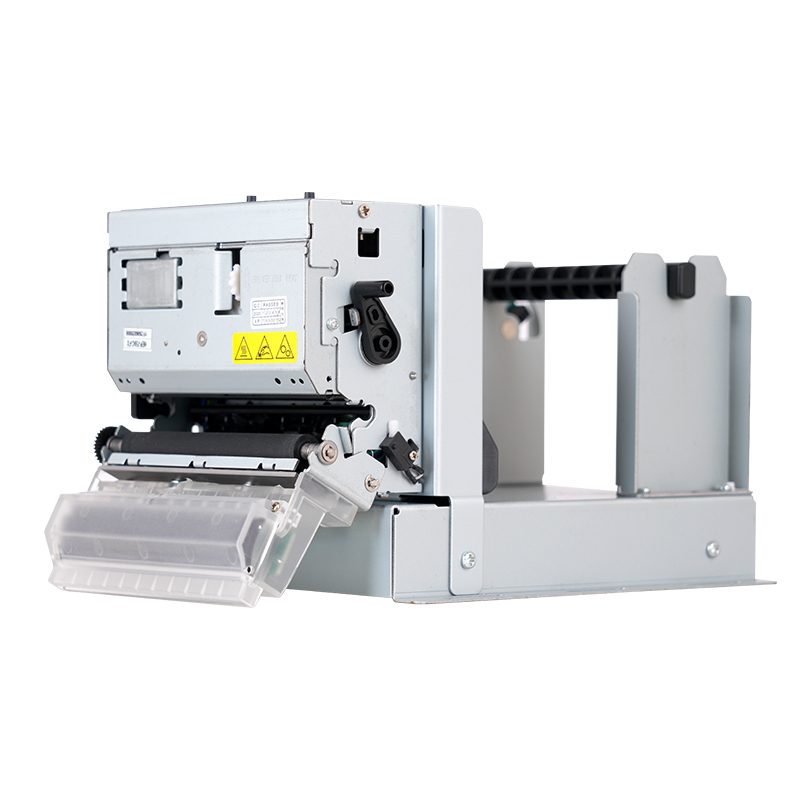

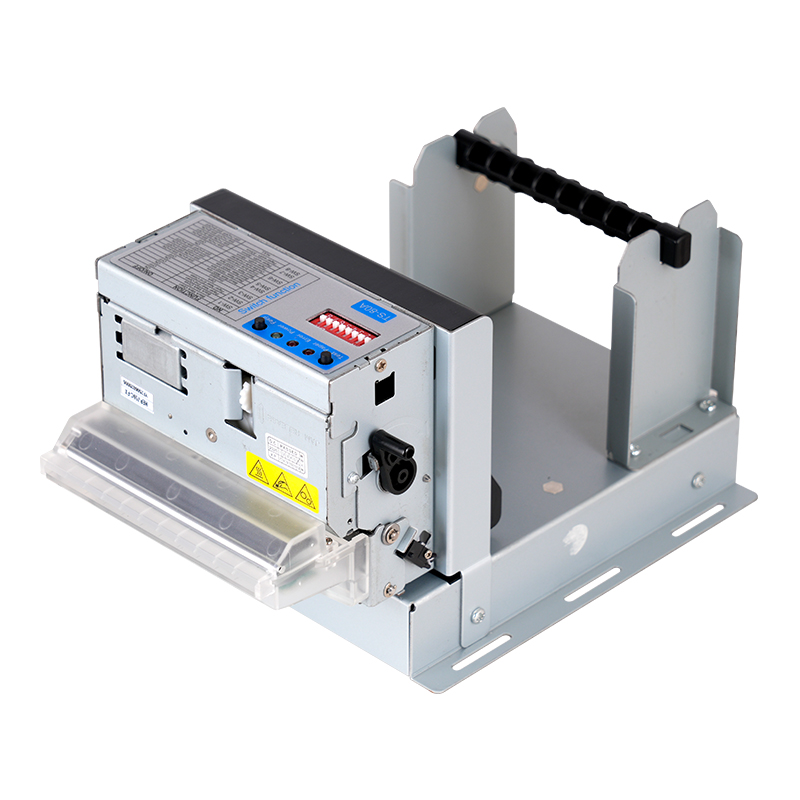

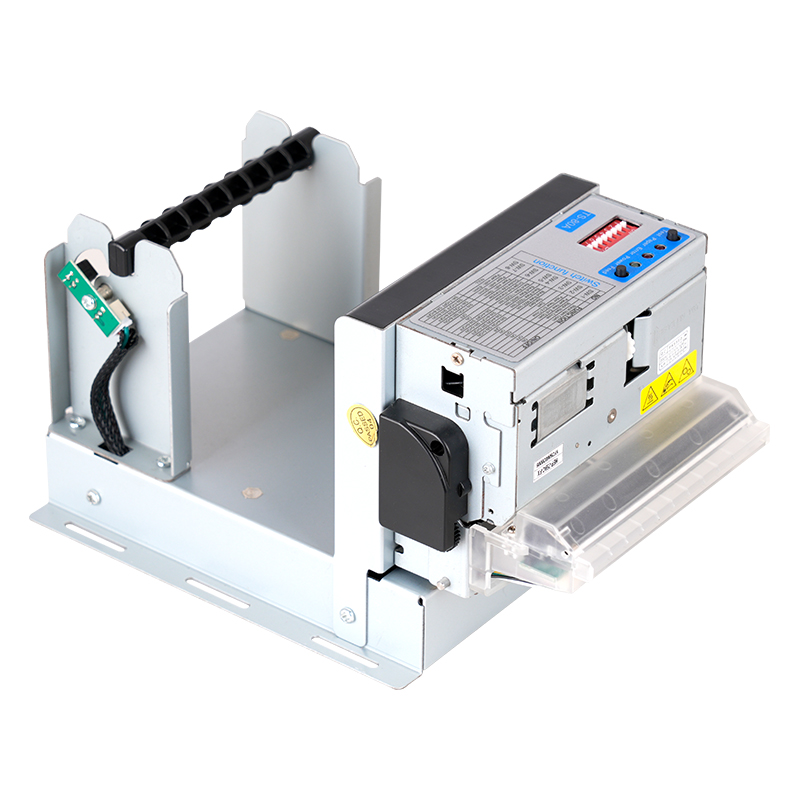

| Model | TS-80A | |
| Printing method | Direct thermal | |
| Resolution | 203 DPI | |
| Paper width | 58mm, 80mm, 83mm | |
| Print width | 48mm/72mm(Default)/80mm | |
| Printing speed | 160 mm/s Max. | |
| Interface | USB+Serial / USB+Parallel | |
| Paper type | Continuous paper, Black mark paper | |
| Paper thickness | 0.06mm-0.08mm | |
Paper roll diameter | 120mm | |
| Barcode Character | ||
| Barcode types | UPC-A / UPC-E / JAN13(EAN13) / JAN8(EAN8) / CODE39 / ITF / CODABAR / CODE93 / CODE128 | |
| 2D barcode | QR CODE / PDF417 | |
| RAM | 2176KB(2MB+128KB) | |
| Input buffer | 26 KB | |
| Flash | 512KB+8MB | |
| Power | ||
| Power output | DC 24V/2.5A | |
| Physical characteristics | ||
| Weight | 1.8 KG | |
| Dimensions | 201.33 × 132 × 114.8mm(D*W*H) | |
| Printhead life | 100 KM | |
| Cutter life | 1 million cuts | |
| Environmental Requirements | ||
| Work environment | Temperature (-10 ~ 55°℃), humidity(10 ~ 80%)(No condensation) | |
| Storage environment | Temperature(-40 ~ 60℃), humidity(10 ~ 90%)(No condensation) | |
| Software | ||
| Emulation | ESC/POS | |
| Driver | Windows/Linux / Android | |
A:Specialized in Receipt printers, Label Printers, Mobile Printers, Panel printers, Kiosk printer, Dot Matrix Printer , Bluetooth printers, Electronic receipt printer.
A:We support 12 months for all of our products.
A:Less than 0.3%
A:1% FOC parts dispatched with shipment. When it is damaged, you can replace it directly.
A:Delivery terms can be EX-WORKS, FOB or C&F.
A:For less than 1000pcs, 7-10 working days.
For more than 1000pcs, 10-15 working days.
A:Thermal printer compatible with ESC\POS.
Label printer compatible with TSPL\ EPL\ DPL\ ZPL emulation.
A:We are a company with ISO9001:2015 international QMS certification. Our products have obtained CCC, CE, FCC, RoHS, KC, SAA, BIS, BSMI certifications.
