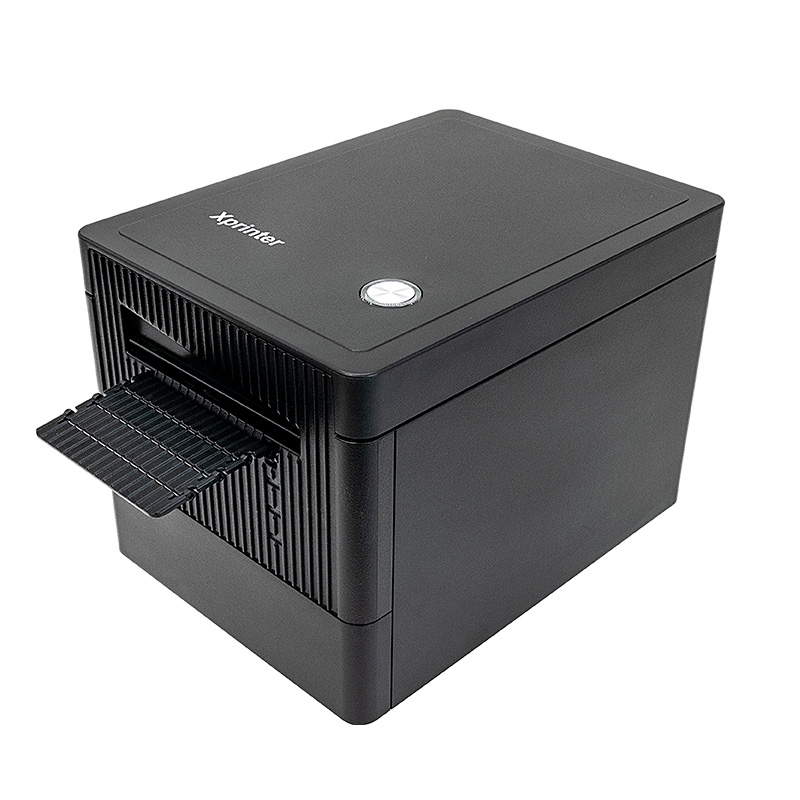

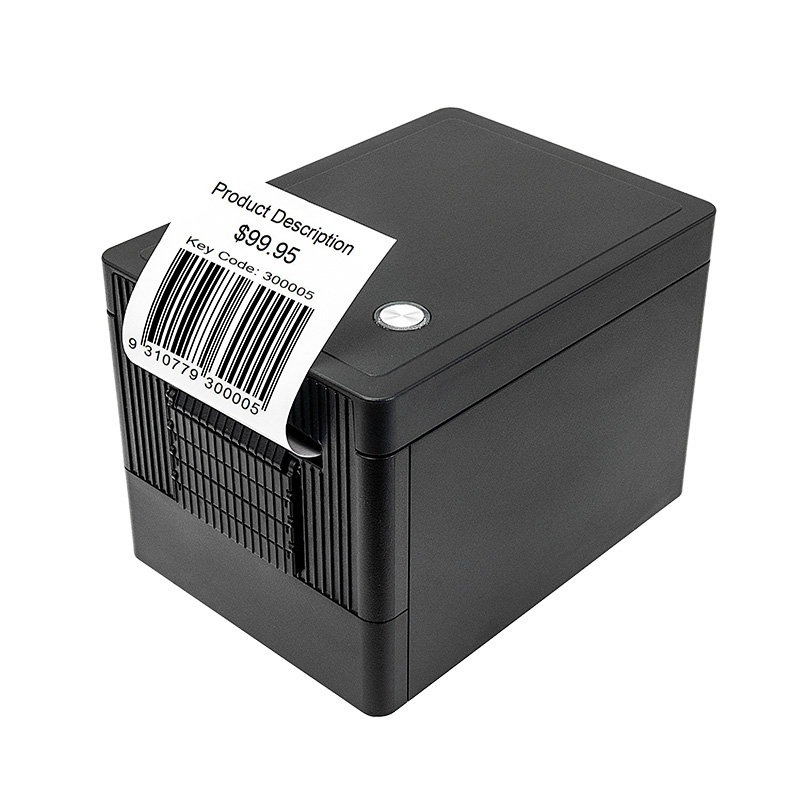

Xp-q303f Linerless Label Printer

Related Products

XP-421B (4 Inch Label Printer)

XP-428B

XP-423B

XP-D362B

Product Information
Customer Reviews

Product Overview

Product Specification

Product video

Service and Support

Product Overview

● Eco-friendly & Energy-saving: Linerless printing reduces material waste and disposal costs.	● Lower Cost, Higher Efficiency: Save on label materials and eliminate the need for liner removal–boosting productivity and reducing labor time.
● Diamond-grade Print Head: Diamond-coated surface with 10xhardness for exceptional durability andextended lifespan.	● Ultra-durable Cutter Module: Silicone-lubricated for long-lasting smooth performance–200,000 cuts with no jamming or sticking.

BROCHURES

DRIVER

Product Specification

Model	XP-Q303F
Print mode	Linerless mode	Receipt mode
Resolution	203 DPI
Printing method	Direct Thermal
Max.print speed	152 mm/s	200 mm/s
Max.print width	35~80 mm	Default 72mm, Max 80mm
Media
Media type	Linerless label	Continuous paper
Media width	35~80 mm	80 mm
Media thickness	0.12~0.2 mm	0.06 ~ 0.08 mm
Media roll diameter	100 mm

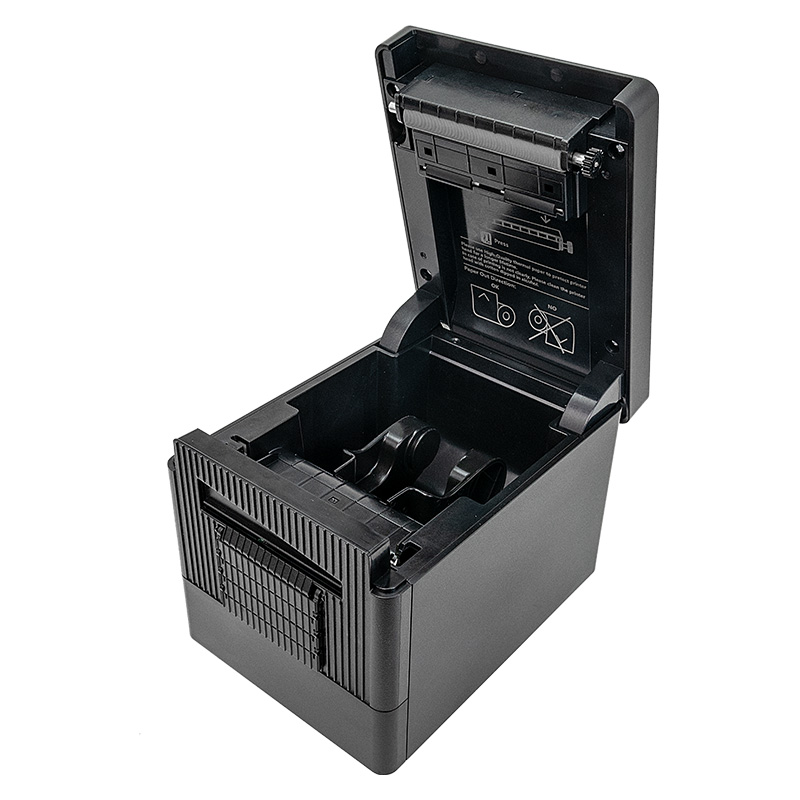

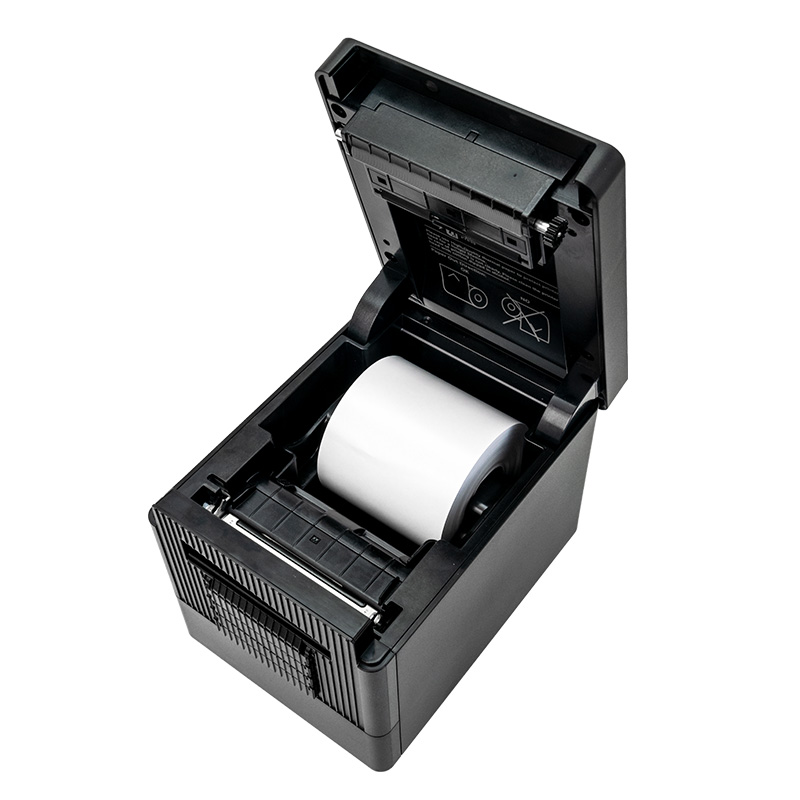

Paper taken method	Easy Paper Loading
Performance Features
Ram	4 M
Flash	4 M

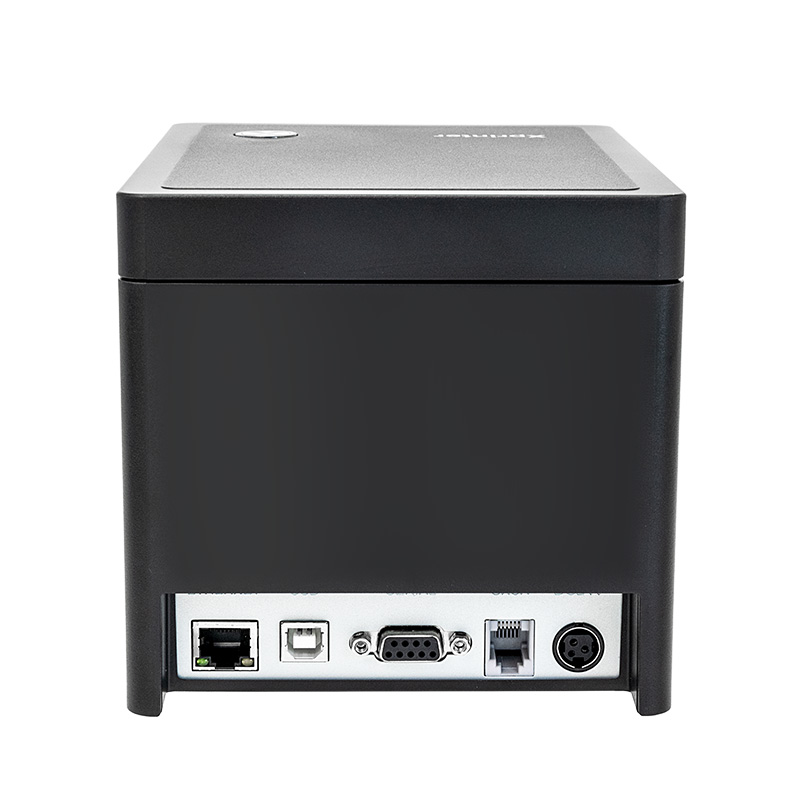

Interfaces	USB+Lan, USB+Lan+Bluetooth, USB+Lan+WIFI, USB+Serial+Lan, USB+Serial+Lan+Bluetooth, USB+Serial+Lan+WIFI
Sensors	Print head temperature sensor/Paper end/ Cover open
Fonts/Graphics/Symbologies
Character sizes	FONT 1 to FONT 8, K, TST24.BF2, TSS24.BF2	Font A:1.5mm×3.0mm(12×24 dots) Font B:1.1mm×2.1mm(9×17 dots) Chinese:3.0mm×3.0mm(24×24 dots)
1D barcode	UPC-A/UPC-E/JAN13(EAN13)/JAN8(EAN8)/CODE39/ITF/CODABAR/CODE93/CODE128
2D bar code	PDF417, QRCODE, DataMatrix	QR code
Emulaion	TSPL	ESC/POS
Physical Features
Dimension	187mm×136mm×132mm(D×W×H)
Weight	1.39 kg
Reliability
Cutter	1.5 million cuts
Print head life	50 km
Software
Driver	Windows, Linux, macOS,Android, ChromeOS
SDK	iOS/ Android/ Windows
Power supply
Power adapter	AC 100-240V/50~60Hz, 2.5A
Printer Input	DC 24V/2.5A
Cash drawer output	DC 24V/1A
Environmental Conditions
Operation environment	5～45℃, Humidity: 20~80% RH
Storage environment	-10～60 ℃ Humidity: 10~90% RH

Service support

Q:What’s your main product line?

A:Specialized in Receipt printers, Label Printers, Mobile Printers, Panel printers, Kiosk printer, Dot Matrix Printer , Bluetooth printers.

Q:What is the Warranty for your printers?

A:We support 12 months for all of our products.

Q:What is printer defective rate?

A:Less than 0.3%

Q:If the goods are damaged, what can we do ?

A:1% FOC parts dispatched with shipment. When it is damaged, you can replace it directly.

Q:What's your delivery terms ?

A:Delivery terms can be EX-WORKS, FOB or C&F.

Q:What’s your leading time?

A:For less than 1000pcs, 7-10 working days.
For more than 1000pcs, 10-15 working days.

Q:What are your product command?

A:Thermal printer compatible with ESC\POS.
Label printer compatible with TSPL\ EPL\ DPL\ ZPL emulation.

Q:How do you control quality?

A:We are a company with ISO9001:2015 international QMS certification. Our products have obtained CCC, CE, FCC, RoHS, KC, SAA, BIS, BSMI certifications.

Favorable rate

100%

Buyer impression

Product Message

*Name

*E-mail

*Content

XP-Q303F Linerless Label Printer
