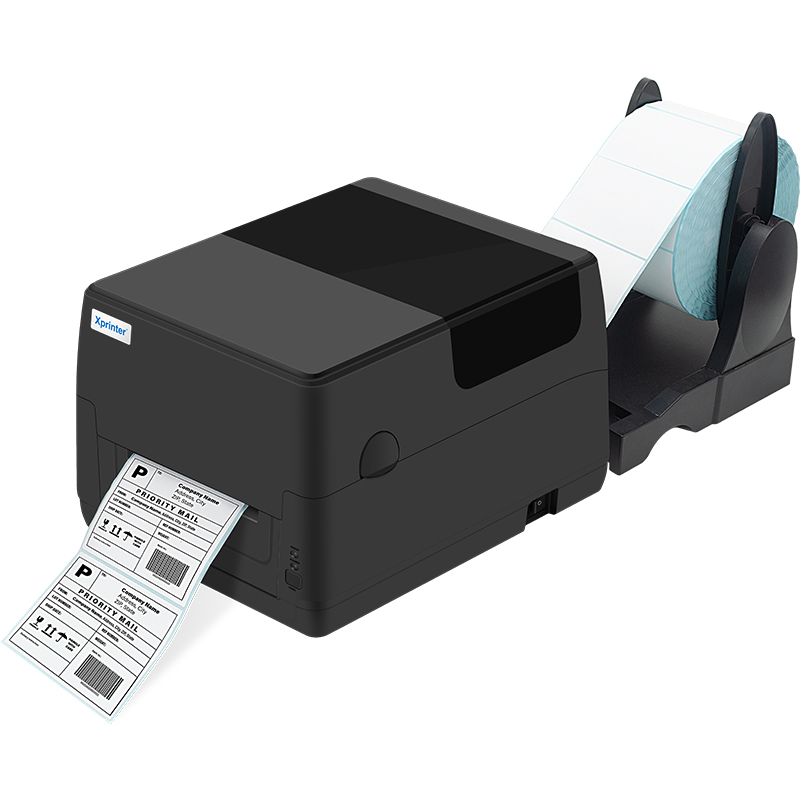

XP-T453B/T453E is available in both direct thermal and thermal transfer.It contains a powerful 32-bit processor for fast label throughout and 16MB flash memory for increased storage of fonts and graphics. The printing speed can be up to 152mm per second,and with 300 meter ribbon that limits downtime by requiring less frequent replacement.
| ● Large paper bin with large window design | ● Multi media detection, manually adjustable |
| ● 300 meters ribbon capacity | ● 32-bit processor with 32 MB SDRAM, 16MB flash memory |
| Printer Specifications | XP-T453B | XP-T453E |
| Resolution | 203 DPI | 300 DPI |
Print Method | Thermal Transfer / Direct Thermal | |
| Memory | 32 MB RAM / 16 MB Flash | |
| Max.Print Width | 4.09 in./ 104 mm | 4.25 in./ 108 mm |
| Max.Print Speed | Up to 6 ips (152 mm/s) | Up to 4 ips (102 mm/s) |
| Media Sensors | Movable Black Mark Sensor / Movable Gap Sensor | |
| Emulation | TSPL, ZPL, EPL, DPL | |
| Interface | USB, USB+Serial, USB+Ethernet, USB+Serial+Ethernet, Optional Wireless Connectivity: Bluetooth / Wi-Fi | |
| Others | Standard RTC, Standard SD Card Slot | |
Media and Ribbon Characteristics | ||
Media Length | 0.39 in.~70 in.(10 mm ~ 1778 mm) | 0.39 in. - 35 in. (10 mm - 889 mm) |
Media Width | 1 in. ~ 4.6 in. (25.4 mm ~ 118 mm) | 1 in. - 4.6 in. (25.4 mm - 118 mm) |
Media Roll Size | 5 in. / 127 mm Outer Diameter, Core Inner Diameter: 1 in. (25.4 mm) | |
Media Thickness | 0.0023 in. (0.06 mm) Min.; 0.01 in. (0.254 mm) Max. | |
Media Types | Continuous, Gap, Black mark, Fan~fold, Perforated Media | |
| Ribbon Outside Diameter | 2.63 in. / 67 mm | |
| Max. Ribbon Length | 300 Meters (984 ft.) | |
| Ribbon Width | 1 in. ~ 4.3 in. (25.4 mm ~ 110 mm) | |
| Ribbon Core I.D. | 1 in. / 25.4 mm | |
Environment Condition | ||
Operating Temp. | 5 ~ 40℃(41~104℉) | |
Storage Temp. | -40 ~ 60℃(-40~140℉) | |
Operating Humidity | 25 ~ 85% Non-Condensing | |
Storage Humidity | 10 ~ 90% Non-Condensing | |
Fonts/Graphics/Symbologies | ||
1D Bar Codes | Code 39, Code 93, Code 128UCC, Code 128 subsets A, B, C, Codabar,Interleaved 2 of 5, EAN-8,EAN-13,EAN-128, UPC-A, UPC-E,EAN and UPC 2(5) digits add-on, MSI, PLESSEY, POSTNET, China POST, GS1 DataBar, Code 11 | |
2D Bar Codes | PDF-417, Maxicode, DataMatrix, QR code, Aztec | |
Fonts and Graphics | Font 0 ~ Font 8 | |
Software | ||
Driver | Windows /Linux /Mac / Android / Chrome OS | |
SDK | Windows/Linux / Android /iOS | |
Software | Bartender UltraLite / Mobile Label Design App | |
Accessories | ||
Standard Accessories | Power Adapter, Power Cord, USB Cable, User Manual, CD , Label spindle, Fixing tab, Fixing tab, Ribbon spindle, Ribbon for test, Ribbon paper core, label roll for test | |
Factory Installed Options | Bluetooth Module, Wi-Fi Module, Peel-off Module, Cutter Module | |
User Options | 8" External Paper Roll Holder | |
Product Warranty | ||
Printhead life | The earlier of 30 km usage or 1 year | |
Platen roller life | The earlier of 30 km usage or 1 year | |
Printer Warranty | 1 Year | |
Physical Characteristics | ||
Dimension | 282 mm × 232 mm × 171 mm (D × W × H) | |
Weight | 2.56 Kg | |
A:Specialized in Receipt printers, Label Printers, Mobile Printers, Panel printers, Kiosk printer, Dot Matrix Printer , Bluetooth printers.
A:We support 12 months for all of our products.
A:Less than 0.3%
A:1% FOC parts dispatched with shipment. When it is damaged, you can replace it directly.
A:Delivery terms can be EX-WORKS, FOB or C&F.
A:For less than 1000pcs, 7-10 working days.
For more than 1000pcs, 10-15 working days.
A:Thermal printer compatible with ESC\POS.
Label printer compatible with TSPL\ EPL\ DPL\ ZPL emulation.
A:We are a company with ISO9001:2015 international QMS certification. Our products have obtained CCC, CE, FCC, RoHS, KC, SAA, BIS, BSMI certifications.
