Xprinter printer 80mm supply for mall

Xprinter printer 80mm supply for mall

Brand name
Xprinter
Place of Origin
China
Model Number
XP-V323H / XP-V330H
Material
ABS
Certification
CCC, CE, FCC, RoHS, KC, SAA, BIS, BSMI
OEM Availability
Yes
Payment Term
T/T, L/C
Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
Product Information of Xprinter printer 80mm supply for mall
Color: Black
Company Advantages
1. Xprinter meets consumer safety standards and regulatory requirements for the textile market. It goes through stretching recovery, contraction, wear, pilling, formaldehyde content and a series of quality testing. This product produces clear images or characters
2. The use of this product helps people reduce their working hours and helps relieve them from tiring works and heavy tasks. This product is widely used in convenience stores, supermarkets, post offices, transportation, etc
3. This product has electromagnetic compatibility. Any EMC regulatory issues, from design concept to final production, are adequately resolved based on our complete knowledge of EMC legislation, guidelines, and standards. Containing few detachable parts, this product saves much maintenance cost
4. This product has electromagnetic compatibility. Techniques and technologies for reducing disturbance and enhancing immunity are cleverly used in its manufacturing. Without the capacity need for ribbons and ink, its design is more compact
5. This product has electromagnetic compatibility. It has passed a comprehensive range of EMC tests such as conducted disturbances immunity testing, antenna screening effectiveness testing, and harmonic current emission testing.

Product Overview

Specification

Service and Support



Product Overview

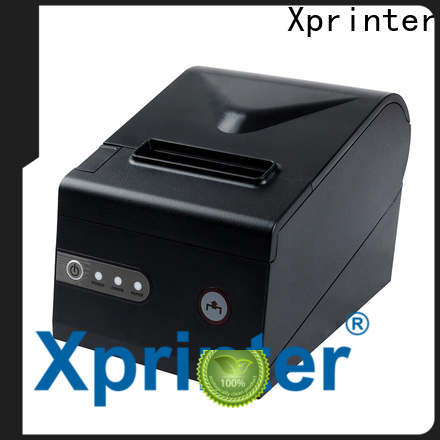

Xprinter printer 80mm supply for mall-1

  • XP-V323H/330H is an economic model with multiple interfaces, compatible with OPOS driver, intelligent cutter control system, compatible with Microsoft POS for .NET v1.14

●  Printing speed 300mm/s Max.●  ESC/POS compatible, setting DIP switch to choose characters and fonts.
●  Better sealing performance for mechanism and printer, Mechanism life can reach to 150 km and Auto cutter life with 1.5 million cuts.

Xprinter printer 80mm supply for mall-2




Specification
ModelXP-V323HXP-V330H
Printing
Printing methodDirect thermal
Paper width79.5±0.5mm
Print width72 mm72mm/ 76mm/ 80mm/ 64mm/ 48mm/ 52mm
Column capacity576 dots/line(adjustable by command)
Printing speed230 mm/s Max.300 mm/s Max.
InterfaceUSB+Serial/LanUSB+Serial+Lan
Line spacing3.75mm (Adjustable by commands)

Column number

80mm paper: Font A - 42 columns or 48 columns/Font B - 56 columns or 64 columns/
Chinese,traditional Chinese - 21 columns or 24 columns

Character size

ANK,Font A:1.5×3.0mm(12×24 dots) Font B:1.1×2.1mm(9×17 dots) Chinese,traditional Chinese:3.0×3.0mm(24×24 dots)
Cutter
Auto cutterPartial
Barcode Character
Extension character
sheet
PC347(Standard Europe)、Katakana、PC850(Multilingual)、PC860(Portuguese)、PC863(Canadian-French)、PC865(Nordic)、West Europe、Greek、Hebrew、East Europe、Iran、WPC1252、PC866(Cyrillic#2)、PC852(Latin2)、PC858、IranII、Latvian、Arabic、PT151(1251)
Barcode typesUPC-A/UPC-E/JAN13(EAN13)/JAN8(EAN8)/CODE39/ITF/CODABAR/CODE93/CODE128
2D BarcodeUnvailable
QR Code / PDF417
Input buffer64 Kbytes2048 Kbytes
NV Flash256 Kbytes256 Kbytes
Power
Power adaptor

Input:AC110V-240V、50~60Hz

Output:  DC 24V/2.5A

Printer inputDC 24V/2.5A
Cash drawer DC 24V/1A
Physical characteristics
Weight1.56 KG
Dimensions200×145×137mm ( D×W×H)
Environmental Requirements
Operation environmentTemperature :0~45℃  humidity:RH 10~80%
Storage environmentTemperature: -10~60℃ humidity: RH 10~90%
Reliability
Cutter life1.5 million cuts
Printer head life150 KM
Software
Emulation
ESC/POS
Driver

Windows/JPOS/OPOS/Linux/Android/Mac

UtilityWindows & Linux test Utility
SDKiOS/Android/Windows
 Service support



Q:What’s your main product line?

A:Specialized in Receipt printers, Label Printers, Mobile Printers, Panel printers, Kiosk printer, Dot Matrix Printer , Bluetooth printers.

Q:What is the Warranty for your printers?

A:We support 12 months for all of our products.

Q:What is printer defective rate?

A:Less than 0.3%

Q:If the goods are damaged, what can we do ?

A:1% FOC parts dispatched with shipment. When it is damaged, you can replace it directly.

Q:What's your delivery terms ?

A:Delivery terms can be  EX-WORKS, FOB or C&F.

Q:What’s your leading time?

A:For less than 1000pcs, 7-10 working days.
For  more than 1000pcs, 10-15 working days.

Q:What are your product command?

A:Thermal printer compatible with ESC\POS.
Label printer compatible with TSPL\ EPL\ DPL\ ZPL emulation.

Q:How do you control quality?

A:We are a company with ISO9001:2015 international QMS certification. Our products have obtained CCC, CE, FCC, RoHS, KC, SAA, BIS, BSMI certifications.





Company Features
1. We have created a well-known brand that brings high quality printer 80mm .
2. We have invested heavily in our people. Everyone at our company is offered experiences and opportunities to grow their knowledge, skills, and capabilities. They help our customers achieve their business goals.
3. Excellence in quality is the promise of Xprinter Group to our customers. Contact!
